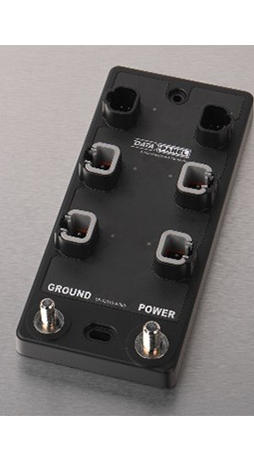

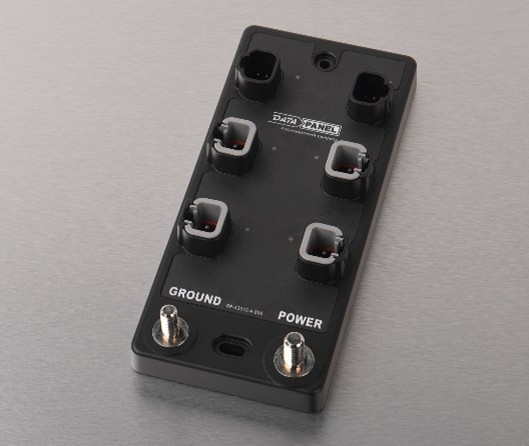

H-Bridge Modules

Versatile Motor Control Simplified

An H-Bridge is a simple circuit used to reverse DC loads, usually motors that are part of a DC linear actuator or cylinder. When a DC motor has no internal control, its simplest form has two wires. This is the most cost-effective form for OEMS. Put power on A and ground B to turn direction 1, then reverse the connections to turn direction 2. H-Bridge modules monitor and execute this process.

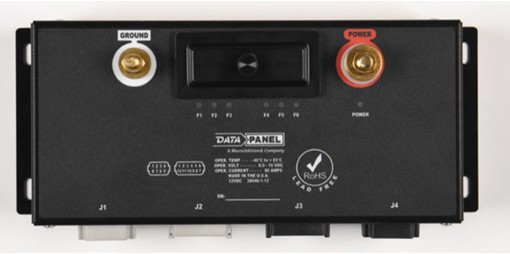

Not only do we have dedicated modules for this exact purpose, but we also have several other components with integrated H-Bridge functionality to accomplish the same goals, and more. We welcome custom requests to integrate the H-Bridge feature in I/O devices, displays, or most any other mobile electronic device.
